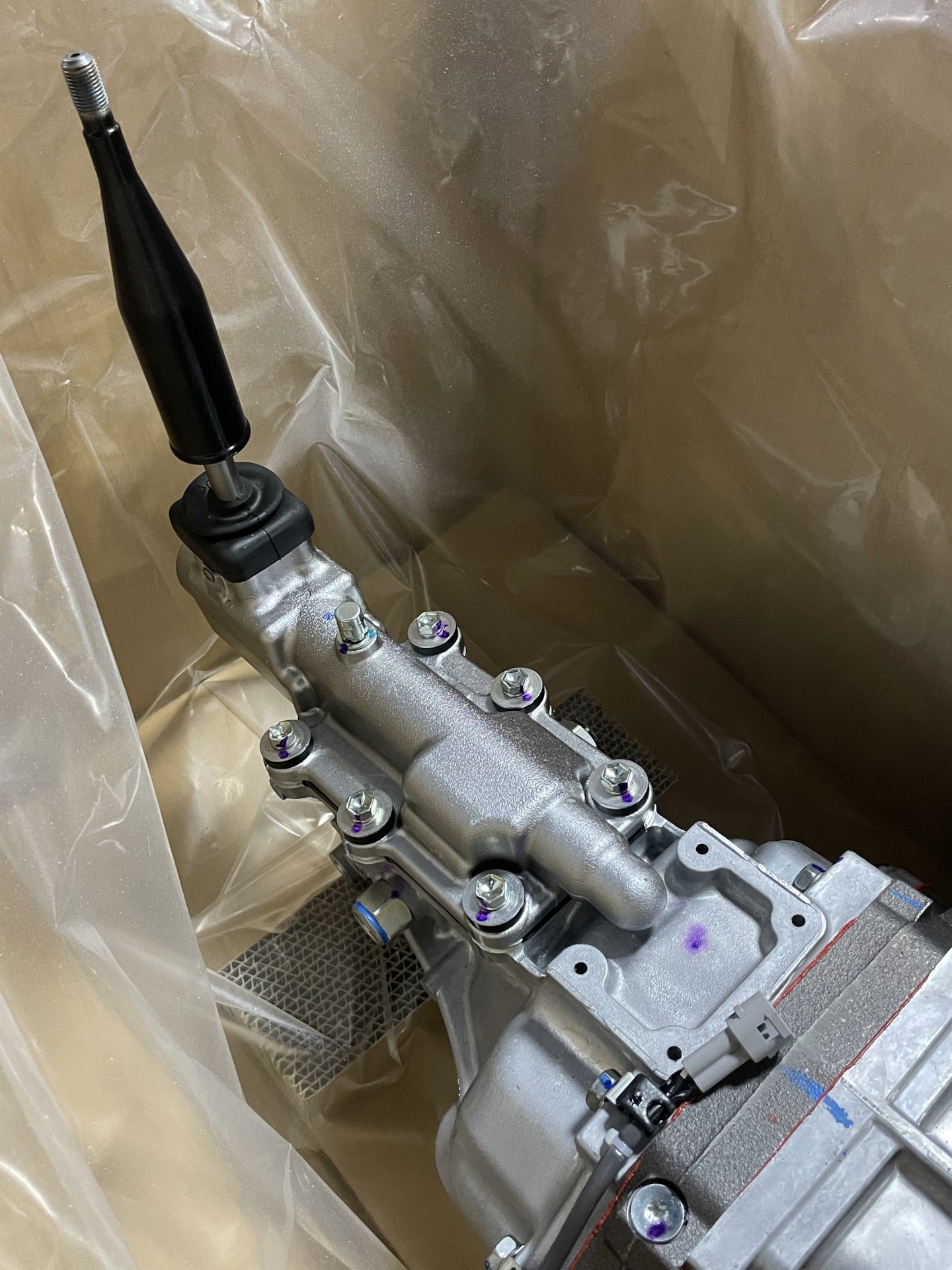

Toyota R154 Speed Manual Gearbox 1JZGTE / 2JZGTE ( 33030-2A630 )

Genuine Toyota R154 Manual Gearbox — Brand New from Japan

Pre Order 1-2 months away

The R154 (33030-2A630) is widely regarded as one of the strongest factory gearboxes ever built for the 1JZ and 2JZ platform. If you know, you know. This is the strongest R154 variant — sourced from the JZX110 chassis — and we bring ours in brand new, directly from Japan.

Perfect as a direct replacement or for any 1JZ/2JZ engine swap build.

Specifications

• Toyota Part Number: 33030-2A630
• Genuine Toyota JZX110 5-speed manual transmission with 1JZ/2JZ bellhousing
• Suits both push and pull type clutch kits
• Far rear shift R154 configuration
• 745mm long from bellhousing to centre of shifter (JZX100 are slightly longer at 765mm)
• Input shaft spline OD: 29.8mm | Spline count: 21 tooth
• Suited for any vehicle wanting to run the famous R154 transmission
• Does not include speed sensor, clutch slave, or bellhousing inspection covers
• Brand new — sourced directly from Japan

50% Pre-Order — Secure Your Box

We have gearboxes arriving nearly every month. If we're out of stock, you can place an order and pay just 50% upfront to secure yours — stock moves fast. Once your unit lands, we'll collect the balance and send it out straight away.

Pre-order arrival dates are estimates and may be subject to shipping or customs delays. You'll be kept informed of any changes.

After Something We Don't Stock?

If you're after a Japanese transmission or gearbox we don't carry, just ask — we can look at sourcing and importing it from Japan for you.
