Built R154 Straight Cut Gearbox

JDM Garage x Kaspa Transmissions - New Lynn

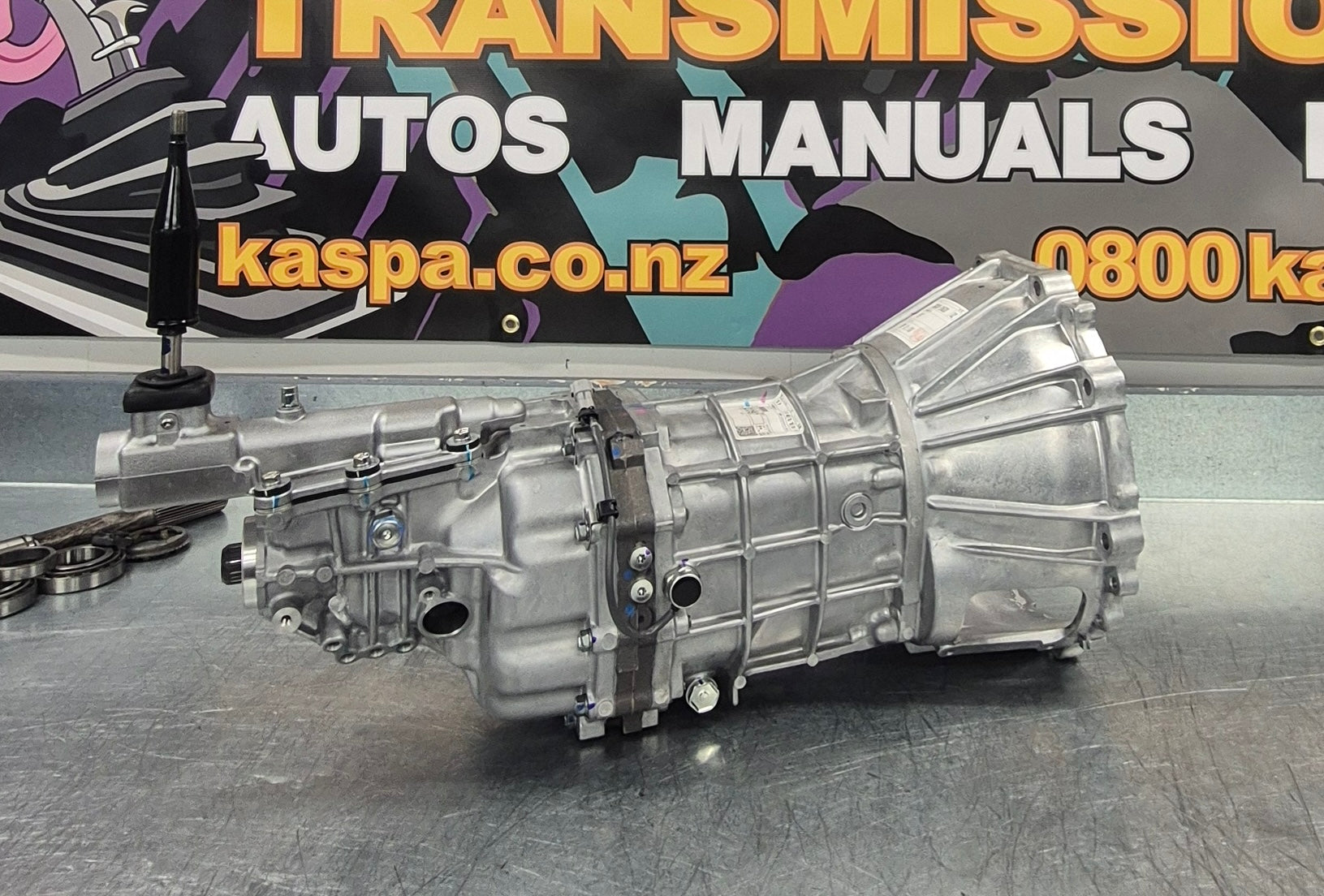

Genuine highly sought after R154 Toyota gearbox built with JDM Garage straight cut internals to suit 1JZ / 2JZ vehicles. Built from a brand new genuine Toyota R154 gearbox and upgraded with brand new JDM Garage straight cut internals, this transmission package is designed for serious street, drift and motorsport applications.

Each gearbox starts with a brand new genuine Toyota R154 transmission sourced directly from Japan, then professionally assembled in New Zealand by KASPA Transmissions New Lynn using the JDM Garage straight cut gear set.

The R154 is widely regarded as one of the strongest factory R154 variants ever produced, making it the perfect platform for high horsepower 1JZ and 2JZ builds and any engine swap.

As far as we are aware, this is one of the only fully assembled brand new built R154 straight cut gearboxes currently available in New Zealand, and one of the only turnkey assembled packages available worldwide.

Designed for aggressive driving and high boost applications.

Whether you're building a drift car, track car or high horsepower street setup, this gearbox is built to handle serious power while delivering the iconic straight cut gear whine enthusiasts love.

Features

• Brand new genuine Toyota R154 gearbox (33030-2A630)

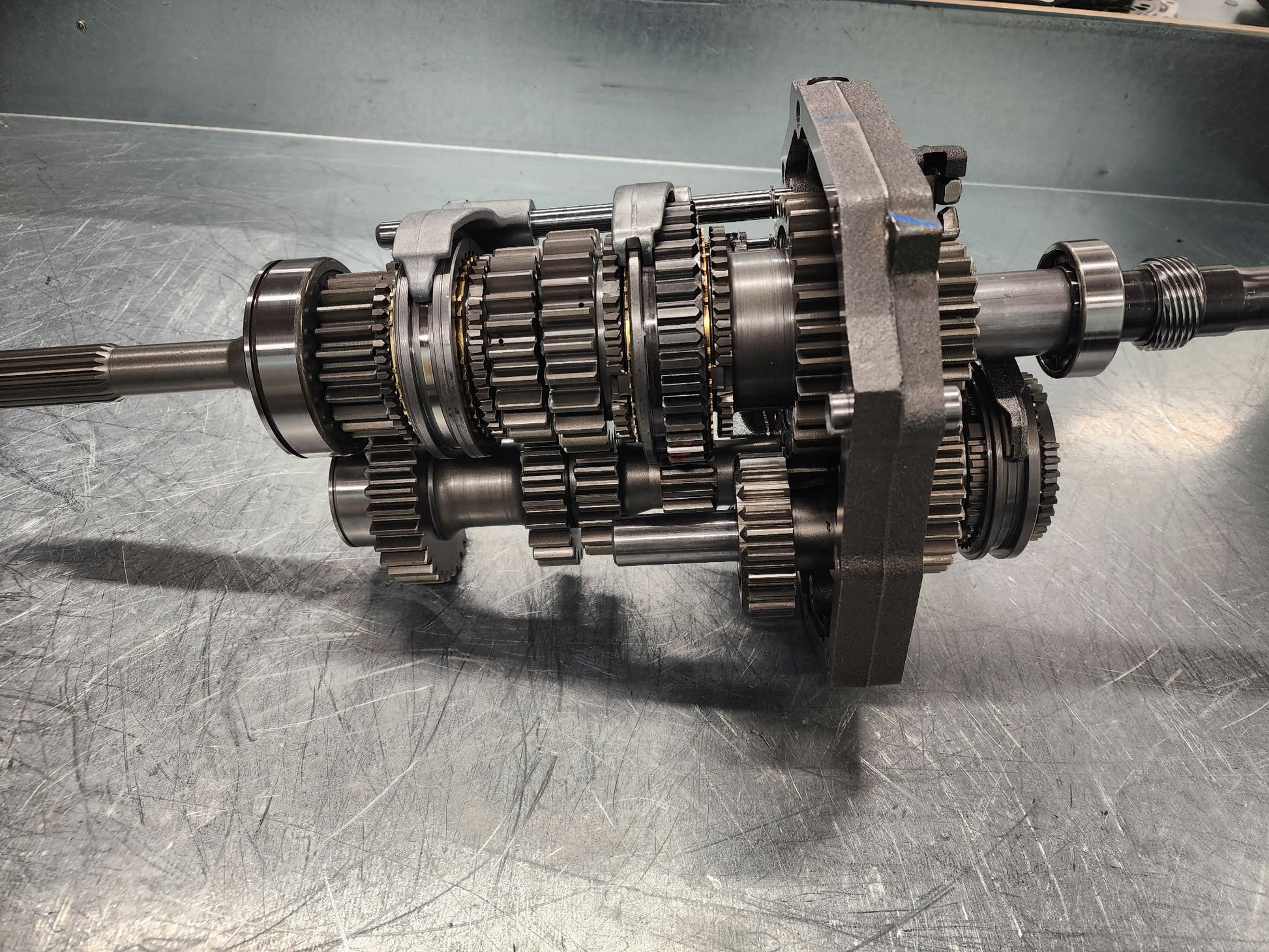

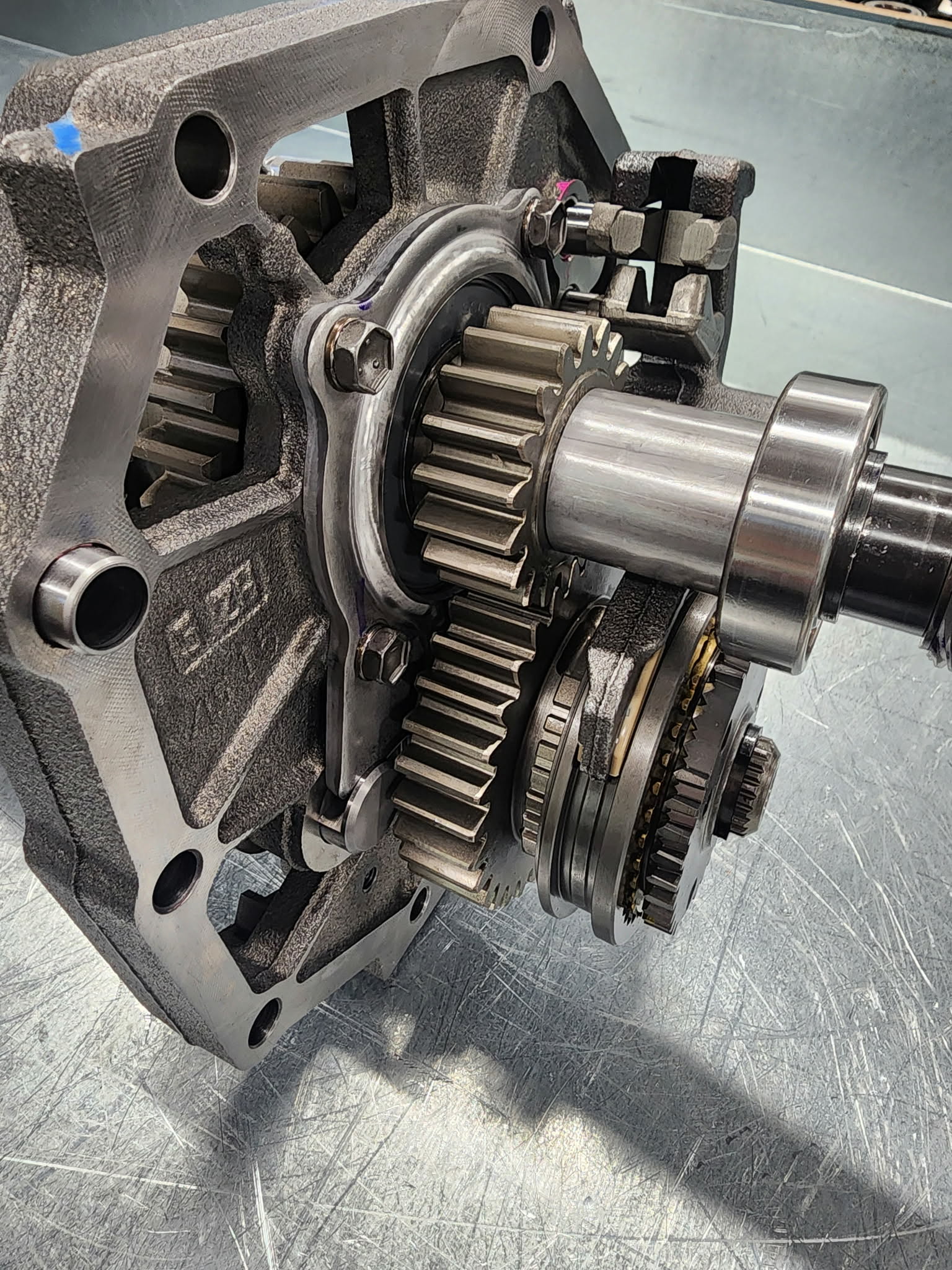

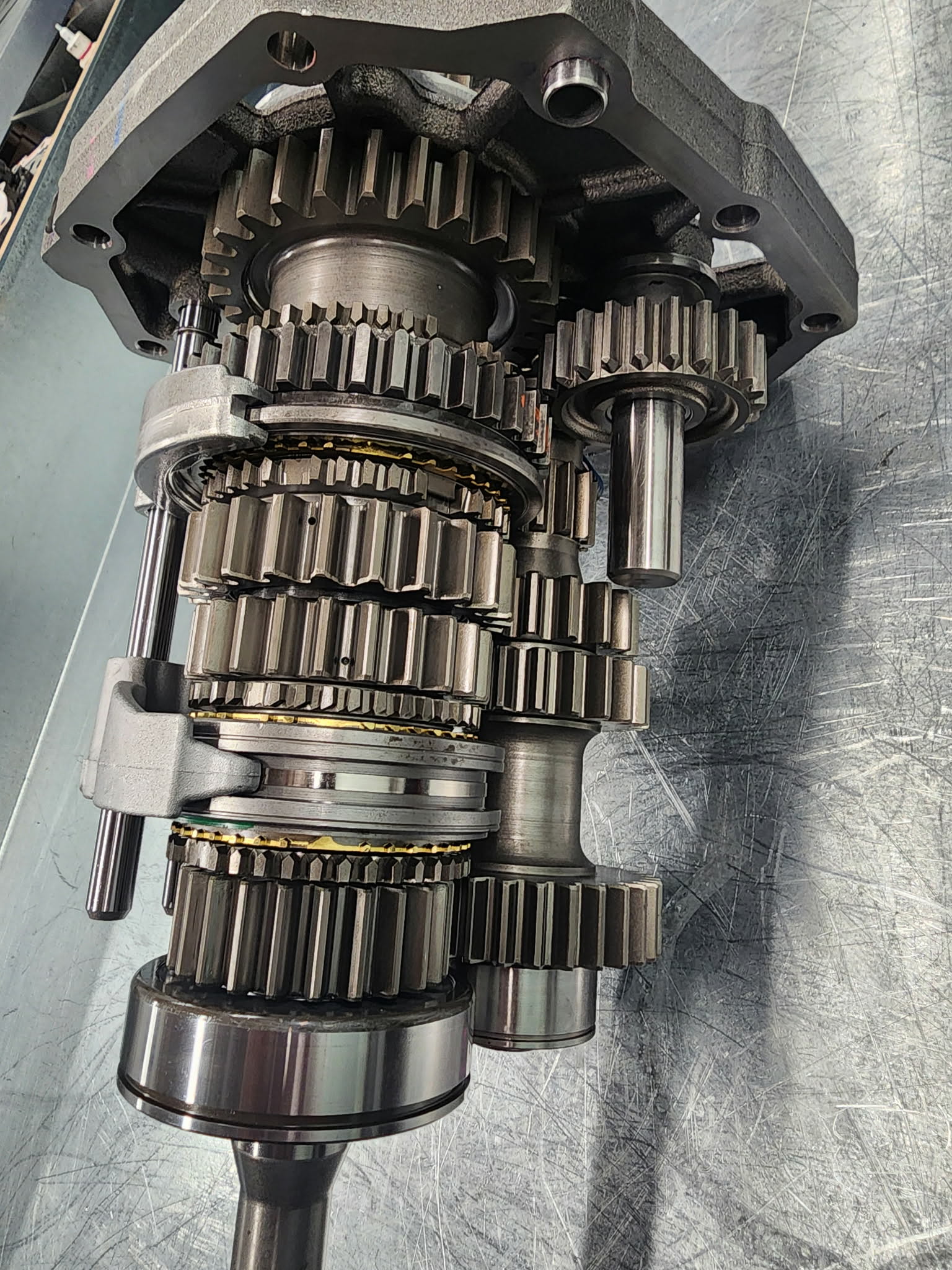

• Brand new JDM Garage synchronized straight cut internals
• Professionally assembled by KASPA Transmissions New Lynn
• Straight-cut gear design for maximum strength and reduced drivetrain loss
• Rated for high horsepower applications (up to approx. 700HP depending on clutch and tyre setup)

• Genuine Toyota casing and housing
• Perfect for drift and high-performance street use
• Aggressive straight cut gear whine

Specifications

• Toyota Part Number: 33030-2A630
• Transmission Type: 5 Speed Manual
• Far Rear Shift R154 Configuration
• Bellhousing Included
• Suits push and pull type clutch kits
• Overall Length: 745mm (bellhousing to centre of shifter)
• Input shaft Spline OD - 29.8mm | Spline count - 21 tooth

Additional Notes

• Produces the typical straight cut gear whine (this is normal)
• Designed for performance use and motorsport applications
• Does not include speed sensor
• Does not include clutch slave cylinder
• Does not include bellhousing inspection covers

Please contact us prior to purchase if you would like to confirm compatibility with your setup.

Worldwide shipping available.
